Technical Data – Steering Rack Bushing

Parameter	Specification
Liner Material	20# Steel, hardened
Rubber Hardness	Shore A 60±5
Tensile Strength	>13.7 MPa
Elongation	>350%
Tear Strength (Type B)	>50 kN/m
Surface Treatment	Hardened / rust-protected

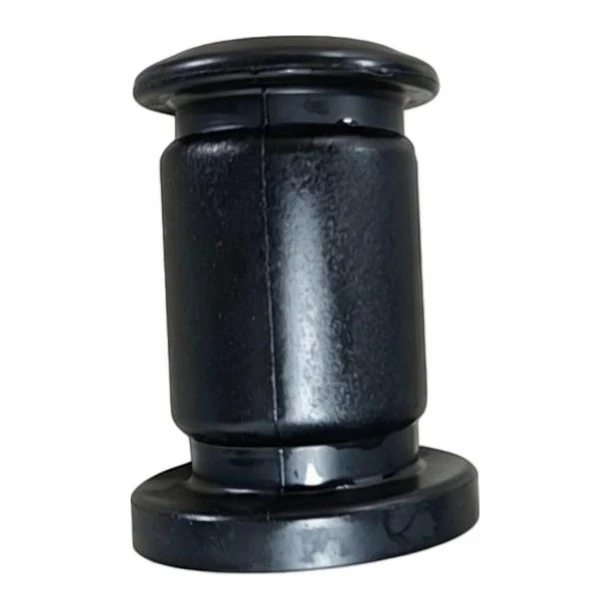

The Key to Smooth, Precise Steering

Inside the rack-and-pinion steering gear, the rack slides back and forth as you turn the wheel. Our Steering Rack Bushing supports the rack, reduces friction, and absorbs road feedback so that you get a linear, smooth steering feel without unwanted kickback. If this bushing wears out, you will notice vague on-center response and increased play – symptoms that we eliminate with our precision-engineered components. We have manufactured steering rack bushings for over 20 years, supplying them to tier-1 steering system suppliers across China.

High-Strength Steel and Durable Rubber

The inner lining is 20# steel with a hardened surface, and the rubber is a special compound with Shore A hardness 60±5. Tensile strength exceeds 13.7 MPa, elongation is >350%, and tear strength (Type B) is >50 kN/m. Compression set is minimal, ensuring the bushing maintains its preload over thousands of steering cycles. Our Steering Rack Bushing is 100% inspected for dimensions, hardness, and bond integrity. We also perform salt spray tests on the metal parts to guarantee corrosion resistance.

Custom Sizes and Fast Delivery

We can produce Steering Rack Bushing to your exact inner and outer diameters, length, and groove profiles. Standard sizes are shipped in 30 working days; custom tooling adds 60-90 days. MOQ is RMB 50,000. We provide one free sample for standard items (freight collect). Payment: 70% prepayment, 20% at port, 10% retention. We accept payments in USD, EUR, and CNY. Our after-sales engineers are available to assist with installation and performance tuning.
